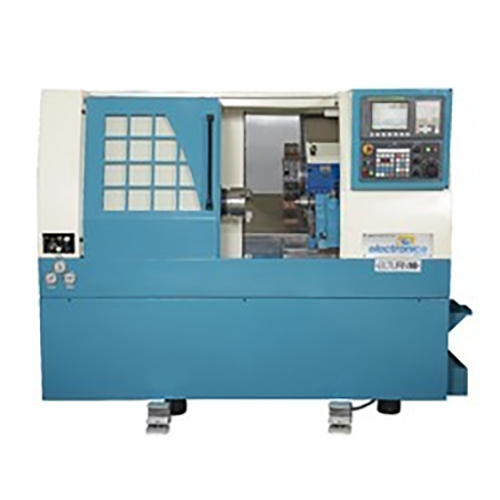

CNC Lathe Machine

CNC Lathe Machine

Send Inquiry

CNC Lathes

In the year 1992, Electronica Started manufacturing its own Retro Fitting of Lathe Machines with Controller known as ELCON-5. The controller manufactured and Designed by Electronica itself. The new bee attracted good customers in the region with a sale of around 100 machines. Electronica started its own full fledge manufacturing facility for CNC Lathe at Bangalore and Pune. An improved technology in Lathe machines gave birth to Super Elturn Model. Subsequently two new variants of the model were introduced in the market- Super Elturn 16 and Super Elturn 20. Around 500 machines were placed in the market. As per the Demand of the industry ELTURN 200 SL and ELTURN 16 were re-launched in the year 2010.

TPM implemented, High rapid, compact footprint

  • Precision Linear Motion Guides for X & Z Axes
  • Max. Turning Diameter  240 ~ 300 mm
  • Max. Turning Length  300 ~ 427 mm
  • Chuck Size 165 ~ 200mm
  • Rapid Traverse- 30 m/min
  • Spindle Power (continuous/ 30 mins.)  5.5/7.5 ~ 7.5/ 11 Kw
  • Wide Opening Doors for Easy Maintenance
  • Lube Oil Separation to Prevent Coolant Contamination
  • Station Bi-Directional Turret
  • Ergonomically Designed operator Panel
